Overview

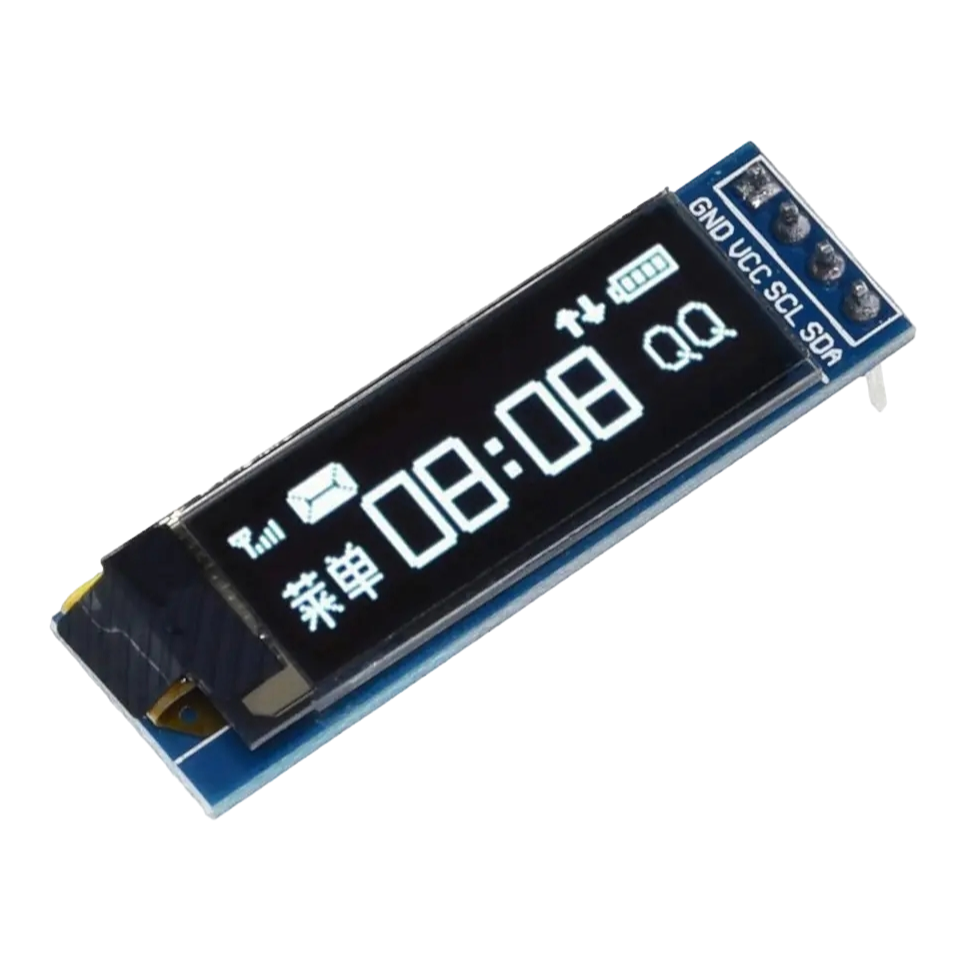

This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.
Features
- 0.91inch small form factor
- 128x32 high resolution
- I2C interface, requires only two signal pins
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Driver: 1306
- Interface: I2C
- Display color: White
- Resolution: 128x32
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 36 x 12.5 (mm)
