Overview

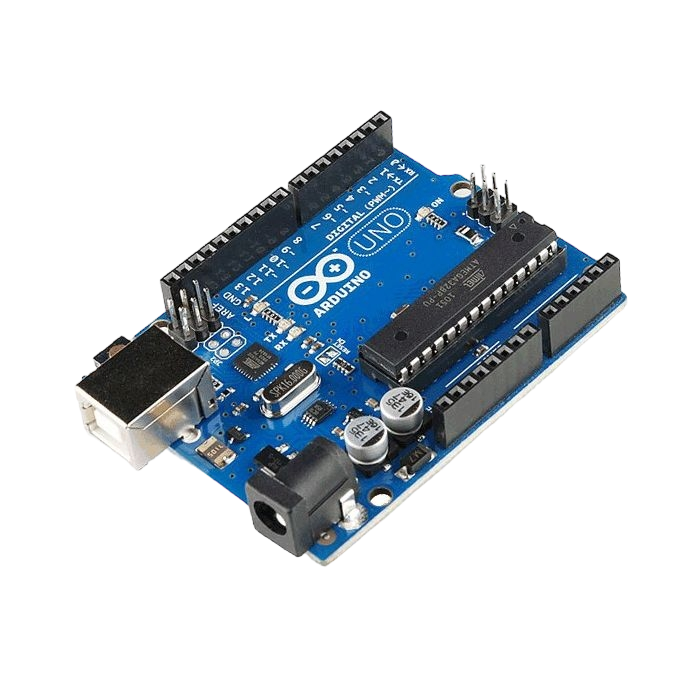

The Arduino UNO R3 DIP is a popular microcontroller board based on the ATmega328P, designed for easy development and prototyping. It features a simple, user-friendly interface with plenty of I/O pins, making it perfect for beginners and advanced users alike in projects ranging from robotics to home automation.
Features
- Microcontroller: ATmega328P
- Digital I/O Pins: 14 (6 PWM outputs)
- Analog Input Pins: 6
- Operating Voltage: 5V
- Flash Memory: 32 KB (of which 0.5 KB is used by bootloader)
- USB Connectivity: For easy programming and serial communication
- Reset Button: Allows easy resetting of the board
- DIP Package: Features the traditional through-hole design for easy replacement
Specifications
- Microcontroller: ATmega328P
- Clock Speed: 16 MHz
- Digital I/O Pins: 14 (6 PWM)
- Analog Inputs: 6
- Operating Voltage: 5V
- Input Voltage: 7-12V (recommended), 6-20V (limits)
- Flash Memory: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
